Injector Dynamics

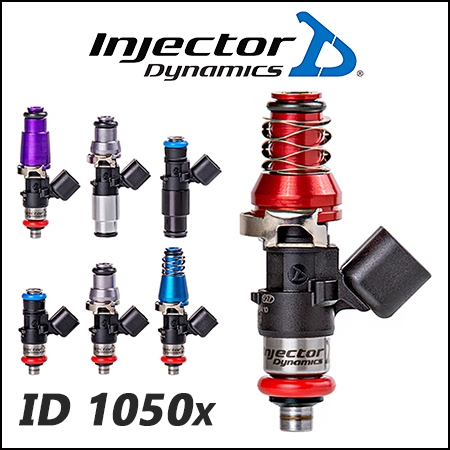

Injector Dynamics Fuel Injectors - The ID1050x [Great for LS1, LS6]

$1,092.99 USD
$1,092.99 USD
Shipping calculated at checkout.
Injector Size
The ID1050x is the evolution of the ID1000, and the latest addition to the X-Series. It is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport, and is the result of lessons learned during development of the ID1300x, and ID1700x. Like the ID1300x and ID1700x, the ID1050x is not a modified production component. It is a built to spec motorsport injector, offering optimization of critical operating parameters important to you, the motorsport tuner. Compared to the original ID1000, the ID1050x offers numerous improvements, and is sure to become the new reference.

  • Corrosion resistant internals make it compatible with all known fuels, capable of extended service life with corrosive fuels.
  • Compact body allows fitment in 200+ applications, including current and future engines utilizing short body injectors.
  • Improved internal flow path increases output by 5% without sacrificing low flow performance.
  • Stronger magnetic circuit offers stable operation up to 10 bar.
  • Replaceable inlet filter extends service life.

Basic Specifications:
Nominal Flow Rate – 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
Maximum Differential Fuel Pressure – 10.0 Bar (145.0 psi)
Fuel Compatibility – Compatible With All Known Fuels
Electrical Connector – USCAR

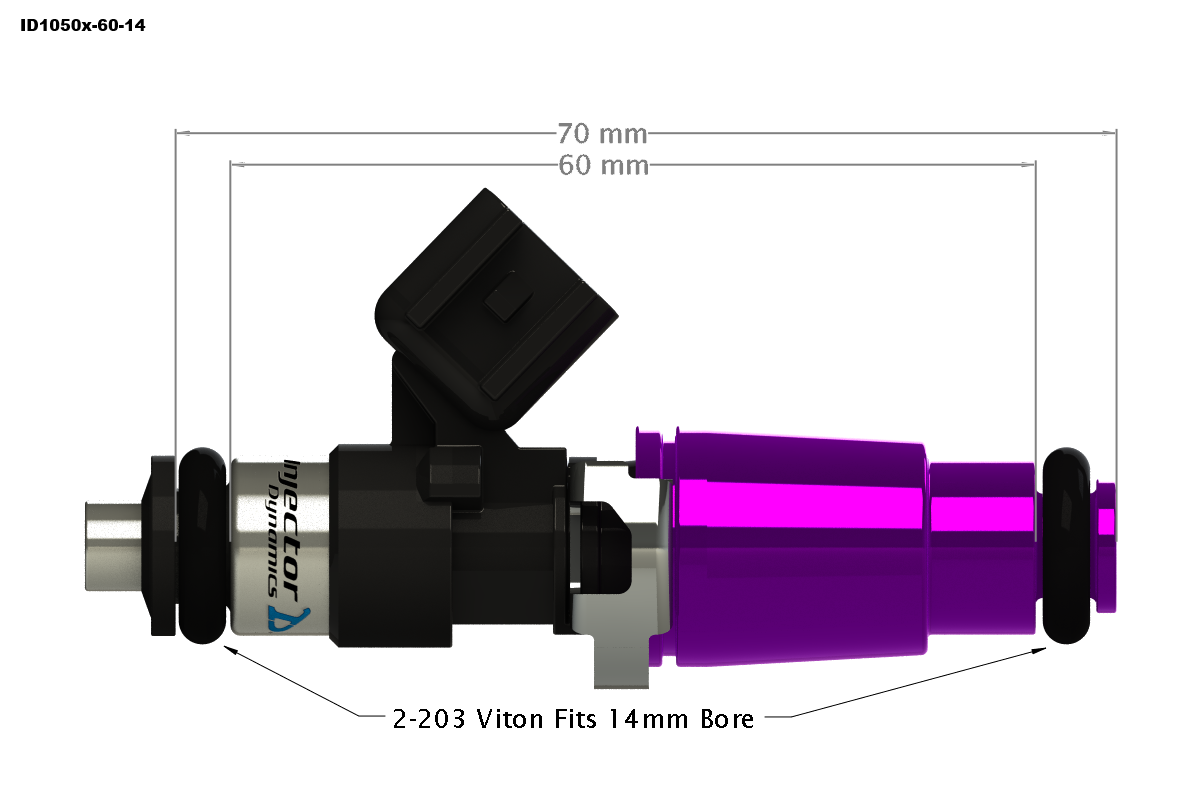

Part # 1050.60.14.14.8

Applications:

BMW
540i / 740i

Chevrolet
LS1/LS6
Camaro 93-96 (LT1)
Camaro  98-01 (LS1)
C5 Corvette (incl Z06)

Ford
SVT Lightning
F150 Harley Davidson
Mustang GT 88-96
Mustang GT 97-04
Mustang GT 05-10
Mustang Cobra 99-04

Holden
Commodore VTII (LS1)
Commodore VX (LS1)
Commodore VY (LS1)
Monaro (LS1)

Pontiac
Firebird (93-97) LT1
Firebird (98-02) LS1
Trans-Am (93-97) LT1
Trans-Am (98-02) LS1
GTO (2004) LS1
