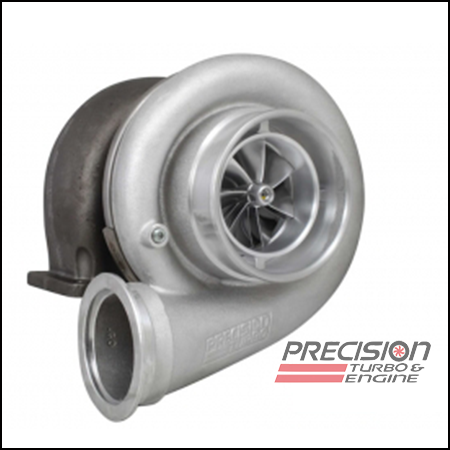

Precision PT8685 GEN2 CEA Turbocharger - T4 Divided .98 A/R

Unlock ultimate forced-induction power with the Precision Turbo & Engine (PTE) PT8685 GEN2 CEA® Turbocharger. Rated up to 1,500 horsepower, this dual ceramic ball bearing turbocharger features an exclusive 86mm GEN2 Competition Engineered Aerodynamics (CEA®) compressor wheel forged from 2618-aluminum for extraordinary airflow efficiency and rapid boost response.

Paired with a high-flow 85mm turbine wheel and Sportsman compressor cover with V-band discharge, the PT8685 is engineered for high-output drag racing, time attack, and extreme street builds. Offered in high-efficiency T4 divided cast iron and stainless steel V-band in/out turbine housing configurations.

Key Features & Benefits:

• GEN2 CEA® Compressor Wheel: Billet 2618-aluminum 86mm compressor wheel maximizes air density and high-pressure ratio stability.
• 1,500 HP Capability: Industry-leading aerodynamics deliver massive airflow for 1,200+ WHP race and street engines.
• Air-Cooled Dual Ceramic Ball Bearing: Air-cooled CHRA ensures smooth shaft rotation, reduced friction, and thermal durability under severe race conditions.
• Multiple Turbine Options: Offered in T4 divided and stainless steel V-band in/out turbine housings across multiple A/R ratios.

Technical Specifications:

• Horsepower Rating: 1,500 HP
• Compressor Wheel Inducer: 86mm GEN2 CEA® Billet
• Turbine Wheel Exducer: 85mm CEA® High-Flow
• Compressor Cover: Sportsman Cover (V-Band Discharge)
• Bearing Center Section: Dual Ceramic Ball Bearing (BB)
• Warranty: Precision Turbo 1-Year Limited Manufacturer Warranty
• Brand: Precision Turbo & Engine
